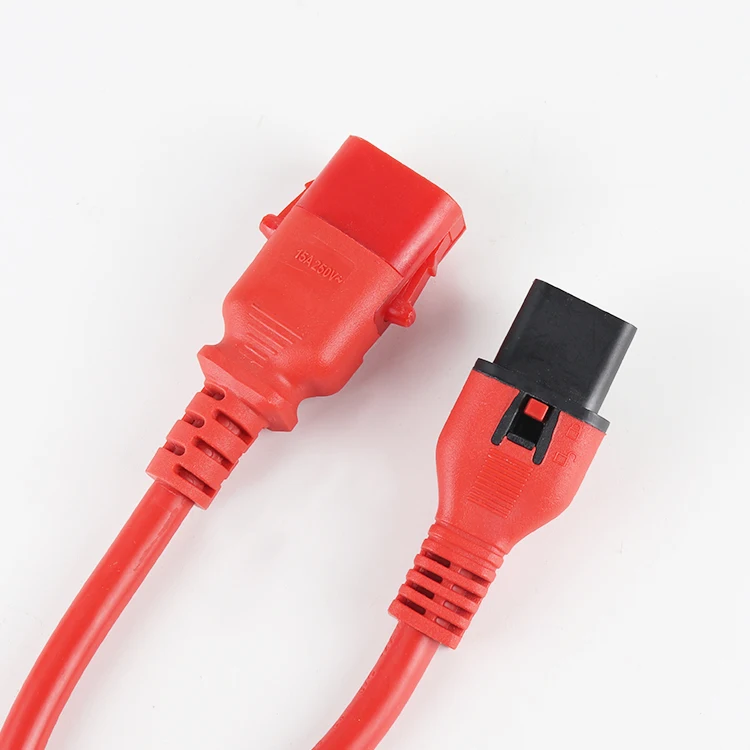

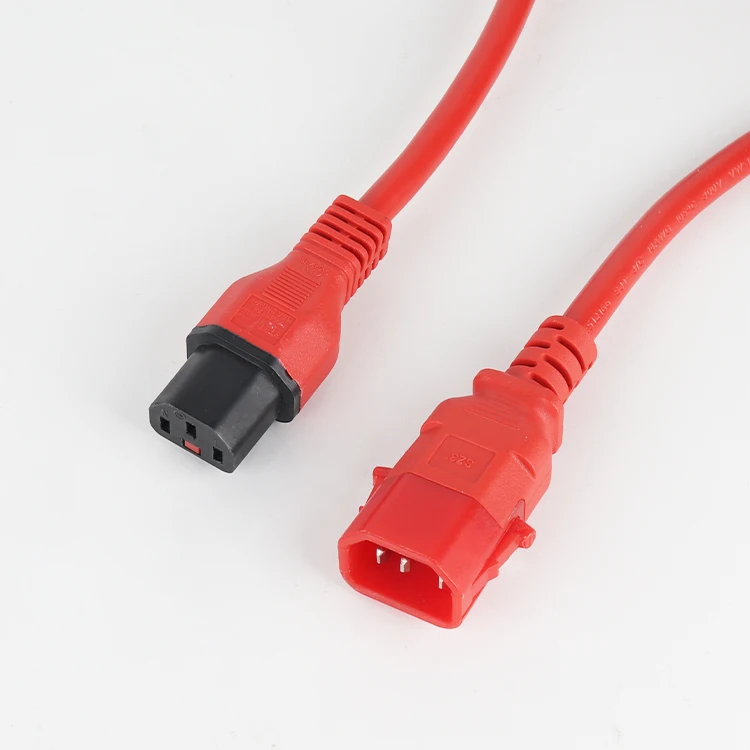

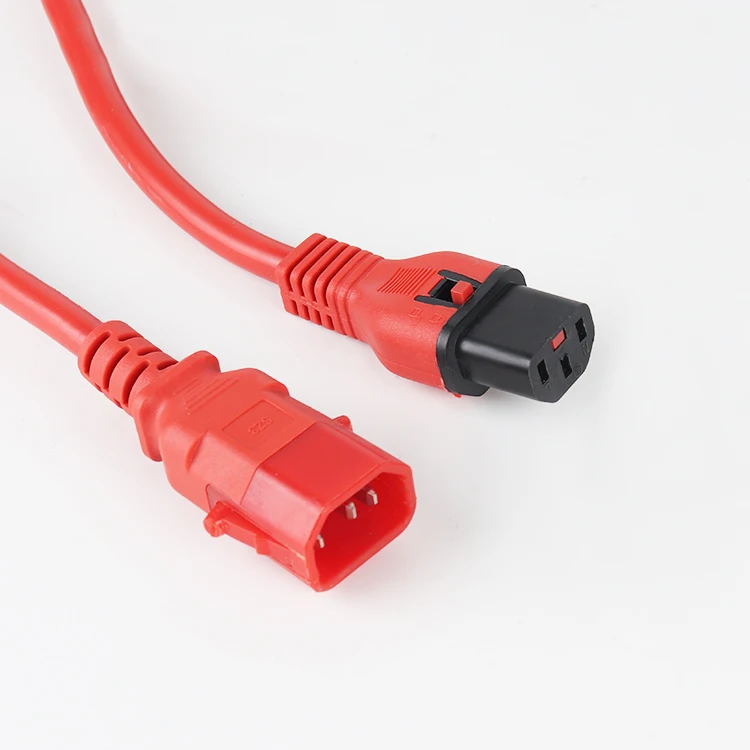

This C14 to C13 Locking PDU Style Computer Power Extension Cable, featuring custom length and color, centers on "high customization" and "anti-loose safety," specifically designed for data centers, enterprise server rooms, and high-end office scenarios. It perfectly addresses the pain points of traditional cables such as fixed length, single color, and easy loosening. In terms of customization, the length can be adjusted from 1m to 10m on demand: 1-2m is suitable for short-distance connection between PDUs and adjacent servers in racks, 3-5m fits distributed power supply for multiple devices in office areas, and 6-10m meets cross-area power supply needs for equipment in large server rooms. Colors can be customized to black, white, gray, blue, etc.—it can either match the unified color scheme of server rooms (e.g., black cables for black racks) or be classified by device type (e.g., blue for servers, gray for monitors), greatly improving wiring neatness and management efficiency.

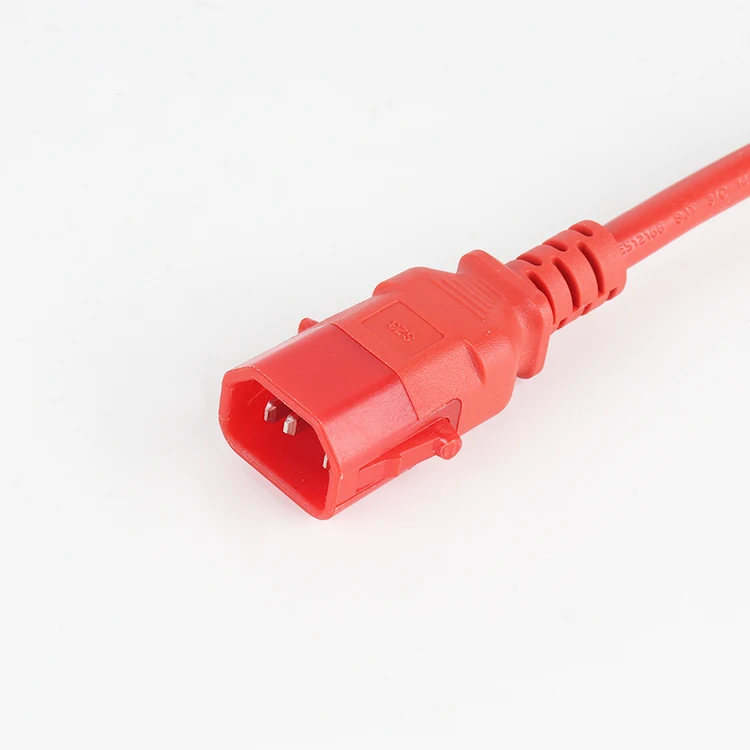

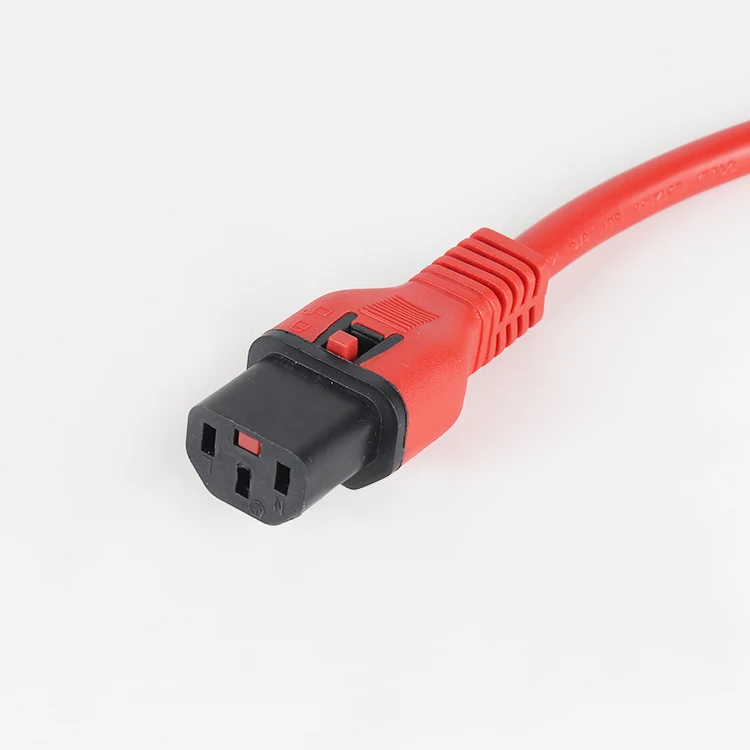

The most prominent design of the product is that both the C14 male connector and C13 female connector are equipped with anti-loose latches: after the C14 male connector is inserted into a PDU or mains socket, the latch can be manually locked to prevent accidental disconnection caused by equipment vibration or human collision; when the C13 female connector is connected to devices like computer hosts or servers, the latch accurately engages with the device interface slot. Even in scenarios of frequent server room maintenance or equipment movement, it can ensure continuous power supply, especially suitable for core devices with high requirements for power stability (such as database servers and monitoring hosts).
In terms of quality and safety, the extension cable has a rated current of 10A and voltage of 125V (compatible with 250V wide voltage), capable of bearing power within 1250W, suitable for most low-to-medium power IT devices. The conductor is made of 1.5mm² high-purity oxygen-free copper with high conductivity and a low resistance of 0.016Ω/m, minimizing heat loss during current transmission and preventing overheating aging. The outer layer is covered with flame-retardant PVC insulation material, complying with the UL94 V-0 standard, which can self-extinguish within 10 seconds when exposed to open flames. It also has wear-resistant and oil-resistant properties, working normally in an environment of -25℃ to 75℃, adapting to the complex temperature, humidity, and dust conditions in server rooms. The interface terminals are nickel-plated brass with strong oxidation resistance; after 10,000 plugging tests, the contact resistance is still less than 50mΩ, and the latch design further improves connection stability.
In addition, the cable has good flexibility (minimum bending radius of 7mm), which can easily pass through rack gaps or narrow spaces behind devices, and is not easy to knot when stored. The surface is printed with customized length, current, voltage and other marks, facilitating later maintenance and identification. Whether used for stable power supply of core equipment in enterprise server rooms, customized wiring in office areas, or flexible expansion of small data centers, this customized C14 to C13 extension cable with latches can become an ideal choice balancing practicality and reliability with the dual advantages of "on-demand customization + anti-loose safety."
